Feuling Oil Pump Corp.

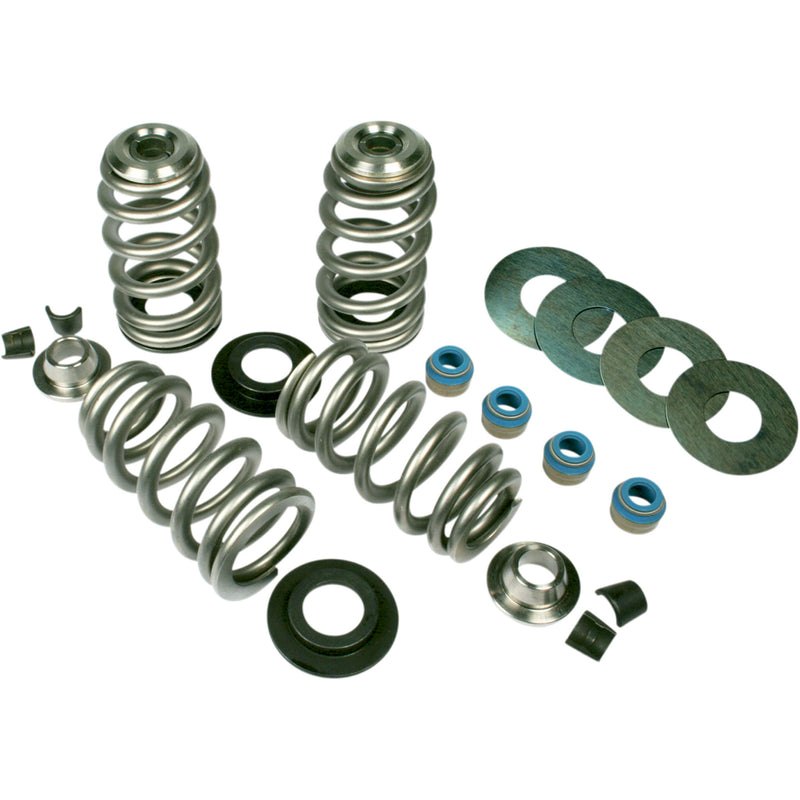

Feuling Oil Pump Corp. Endurance Beehive Spring Kit - 1100 For Harley Motorcycles 1984-2004
MPN:
1100
SKU:
0926-0851
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Endurance Beehive Spring Kit - 1100 For Harley Motorcycles 1984-2004
MPN:
1100
SKU:
0926-0851
Availability:
Only 4 left!
Original price
$379.95
-
Original price
$379.95
Original price
$379.95
$379.95
-
$379.95
Current price
$379.95
Product Details
Features
- Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
- Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
- Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Direct bolt-in replacement up to 650" cam lift; no machining or rocker box clearancing required
- Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lbs./installed height; 198 lbs. at 1.685" (.535" lift), 194 lbs. at 1.703" (.553" lift), 190 lbs. at 1.724" (.574" lift), 187 lbs. at 1.754" (.604" lift), 185 lbs. at 1.780" (.630" lift), 160 lbs. at 1.800" (.650" lift), 375 lbs. at 1.150" (open height) coil bind at 1.100"
- Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
- Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .650" lift for 05-17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Application | Exhaust / Intake |
| Style | Ovate Wire Beehive |
| Model | Endurance Beehive |
| Collar Material | Titanium |
| Material | Steel |
| Stem Diameter | 7.056 mm |
| Spring Lift | 0,650" / 0.650" |
| Units | Kit |
| Riding Style | Street |
Features
- Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
- Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
- Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Direct bolt-in replacement up to 650" cam lift; no machining or rocker box clearancing required
- Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Seat lbs./installed height; 198 lbs. at 1.685" (.535" lift), 194 lbs. at 1.703" (.553" lift), 190 lbs. at 1.724" (.574" lift), 187 lbs. at 1.754" (.604" lift), 185 lbs. at 1.780" (.630" lift), 160 lbs. at 1.800" (.650" lift), 375 lbs. at 1.150" (open height) coil bind at 1.100"
- Feuling® BeeHive® valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs
- Made in the U.S.A.
- Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to .574" lift for 84-04 Big Twin and 86-03 XL and up to .650" lift for 05-17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.
Specs
| Product Name | Spring Kit |
| Type | Valve |
| Application | Exhaust / Intake |
| Style | Ovate Wire Beehive |
| Model | Endurance Beehive |
| Collar Material | Titanium |
| Material | Steel |
| Stem Diameter | 7.056 mm |
| Spring Lift | 0,650" / 0.650" |
| Units | Kit |
| Riding Style | Street |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0926-0851 | 1100 | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
