Feuling Oil Pump Corp.

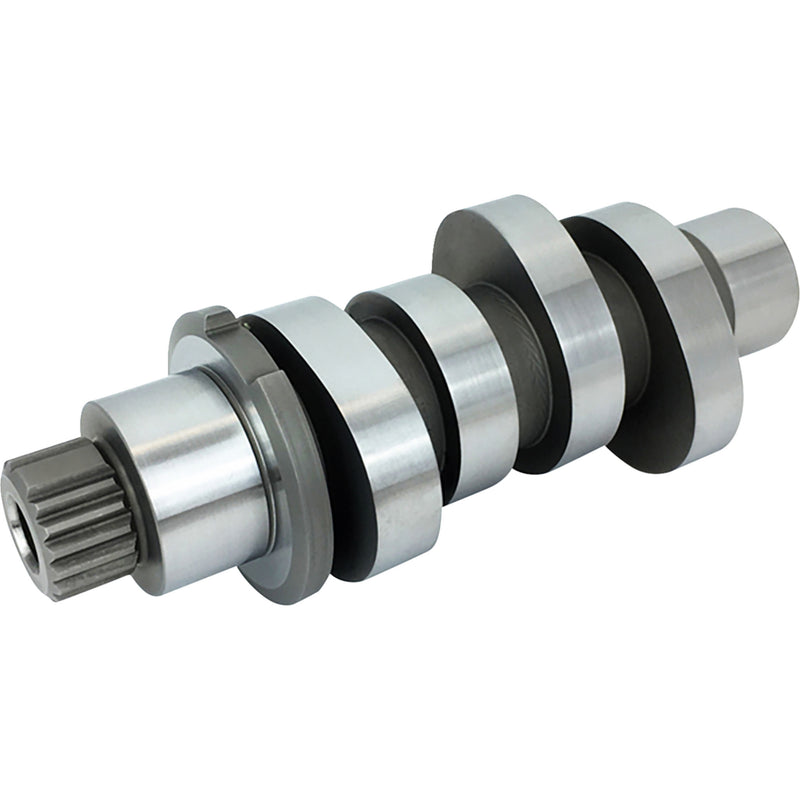

Feuling Oil Pump Corp. Reaper Camshaft - 1352 For Harley Motorcycles 2017-2026
MPN:
1352
SKU:
0925-1608
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Reaper Camshaft - 1352 For Harley Motorcycles 2017-2026
MPN:
1352
SKU:
0925-1608
Availability:
23 in stock, ready to be shipped
Race series
RPM range 3100-6650
Aggressive camshaft requiring high lift and higher load valve springs, performance pushrods and lifters.
Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body.
High flow air cleaner and triple stepped exhaust pipe highly recommended.
Feuling recommends matching this cam with Race Series oiling system.
Clearances must be checked when installing.
Feuling does not recommend tuning beyond stock emissions standards.
Specs
Product Name
Camshaft
Type
Chain Drive
Application
Exhaust / Intake
Model
Reaper
Grind
618 Series
Intake Lift at TDC
0.195"
Intake Open
20°
Intake Lift
0.608"
Intake Duration
242°
Intake Lobe Centerline
101°
Intake Close
42°
Exhaust Lift
0.618"
Exhaust Duration
264°
Exhaust Lobe Centerline
113°
Exhaust Lift at TDC
0.170"
Exhaust Open
65°
Exhaust Close
19°
Units
Each
Riding Style
Street
Original price
$359.95
-
Original price
$359.95
Original price
$359.95
$359.95
-
$359.95
Current price
$359.95
Product Details
Features
- Race series
- RPM range 3100-6650
- Aggressive camshaft requiring high lift and higher load valve springs, performance pushrods and lifters.
- Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body.
- High flow air cleaner and triple stepped exhaust pipe highly recommended.
- Feuling recommends matching this cam with Race Series oiling system.
- Clearances must be checked when installing.
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Product Name | Camshaft |
| Type | Chain Drive |
| Application | Exhaust / Intake |
| Model | Reaper |
| Grind | 618 Series |
| Intake Lift at TDC | 0.195" |
| Intake Open | 20° |
| Intake Lift | 0.608" |
| Intake Duration | 242° |
| Intake Lobe Centerline | 101° |
| Intake Close | 42° |
| Exhaust Lift | 0.618" |
| Exhaust Duration | 264° |
| Exhaust Lobe Centerline | 113° |
| Exhaust Lift at TDC | 0.170" |
| Exhaust Open | 65° |
| Exhaust Close | 19° |
| Units | Each |
| Riding Style | Street |
Product Description
Features
- Race series
- RPM range 3100-6650
- Aggressive camshaft requiring high lift and higher load valve springs, performance pushrods and lifters.
- Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body.
- High flow air cleaner and triple stepped exhaust pipe highly recommended.
- Feuling recommends matching this cam with Race Series oiling system.
- Clearances must be checked when installing.
- Feuling does not recommend tuning beyond stock emissions standards.
Specs
| Product Name | Camshaft |
| Type | Chain Drive |
| Application | Exhaust / Intake |
| Model | Reaper |
| Grind | 618 Series |
| Intake Lift at TDC | 0.195" |
| Intake Open | 20° |
| Intake Lift | 0.608" |
| Intake Duration | 242° |
| Intake Lobe Centerline | 101° |
| Intake Close | 42° |
| Exhaust Lift | 0.618" |
| Exhaust Duration | 264° |
| Exhaust Lobe Centerline | 113° |
| Exhaust Lift at TDC | 0.170" |
| Exhaust Open | 65° |
| Exhaust Close | 19° |
| Units | Each |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1608 | 1352 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
