Feuling Oil Pump Corp.
Feuling Oil Pump Corp. HP+® Camchest Kit - 7220P For Harley Motorcycles 1999-2006
MPN:
7220P
SKU:
0925-1393
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. HP+® Camchest Kit - 7220P For Harley Motorcycles 1999-2006
MPN:
7220P
SKU:
0925-1393
Availability:
Out of stock
Update old mechanical style cams and tensioners to hydraulic tensioner system
25°-35° cooler engine temperatures
25°-35° cooler engine temperatures
15-30 more PSI of oil pressure
Eliminate wet sumping, blow by and oily air cleaners

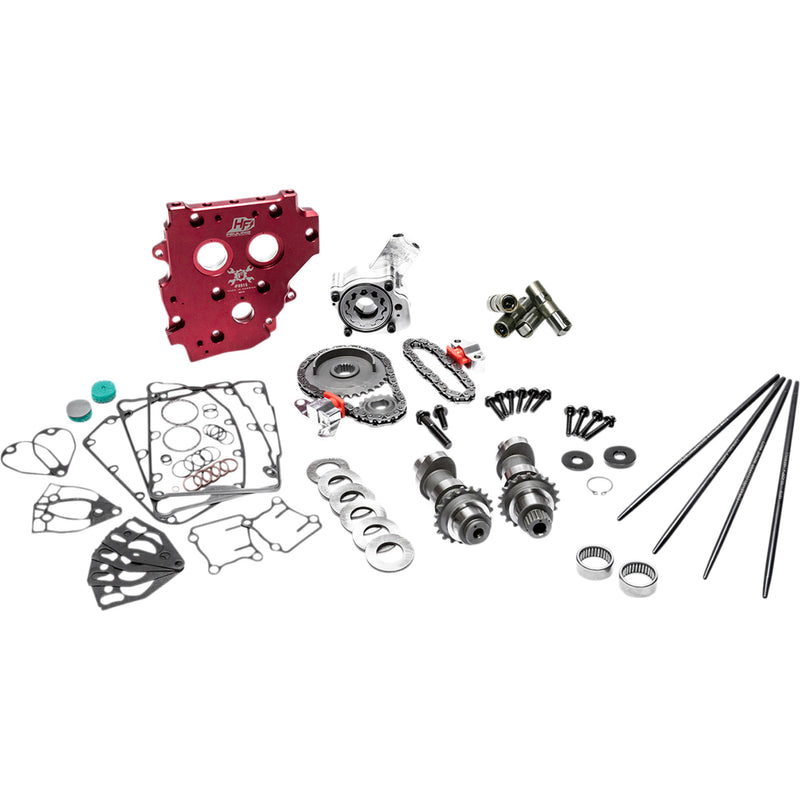

Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
For '99-'06 Twin Cam, except for '06 Dyna.
Specs
Product Name
Camchest Kit
Type
Chain Conversion
Application
Exhaust / Intake
Model
HP+®
Grind
525 Series
Intake Lift at TDC
0.099"
Intake Open
4°
Intake Lift
0.525"
Intake Duration
226°
Intake Lobe Centerline
109°
Intake Close
42°
Exhaust Lift
0.535"
Exhaust Duration
236°
Exhaust Lobe Centerline
113°
Exhaust Lift at TDC
0.112"
Exhaust Open
51°
Exhaust Close
5°
Features
One Piece Pushrods
Units
Kit
Riding Style
Street
Sold out
Original price
$1,939.95
-
Original price
$1,939.95
Original price
$1,939.95
$1,939.95
-
$1,939.95
Current price
$1,939.95
Product Details
Features
- Update old mechanical style cams and tensioners to hydraulic tensioner system
- 25°-35° cooler engine temperatures
- 25°-35° cooler engine temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners
- Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
- Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
- For '99-'06 Twin Cam, except for '06 Dyna.
Specs
| Product Name | Camchest Kit |
| Type | Chain Conversion |
| Application | Exhaust / Intake |
| Model | HP+® |
| Grind | 525 Series |
| Intake Lift at TDC | 0.099" |
| Intake Open | 4° |
| Intake Lift | 0.525" |
| Intake Duration | 226° |
| Intake Lobe Centerline | 109° |
| Intake Close | 42° |
| Exhaust Lift | 0.535" |
| Exhaust Duration | 236° |
| Exhaust Lobe Centerline | 113° |
| Exhaust Lift at TDC | 0.112" |
| Exhaust Open | 51° |
| Exhaust Close | 5° |
| Features | One Piece Pushrods |
| Units | Kit |
| Riding Style | Street |
Product Description
Features
- Update old mechanical style cams and tensioners to hydraulic tensioner system
- 25°-35° cooler engine temperatures
- 25°-35° cooler engine temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners
- Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
- Conversion camshafts for '99-'06 Twin Cam engines utilize the '99-'06 inner cam journals with the '07-'16 outer cam journals allowing the use of '07-'16 camplates, oil pump, hydraulic chain tensioners and chain drive system (includes sprockets, hydraulic tensioners, chains and spacers needed for installation)
- For '99-'06 Twin Cam, except for '06 Dyna.
Specs
| Product Name | Camchest Kit |
| Type | Chain Conversion |
| Application | Exhaust / Intake |
| Model | HP+® |
| Grind | 525 Series |
| Intake Lift at TDC | 0.099" |
| Intake Open | 4° |
| Intake Lift | 0.525" |
| Intake Duration | 226° |
| Intake Lobe Centerline | 109° |
| Intake Close | 42° |
| Exhaust Lift | 0.535" |
| Exhaust Duration | 236° |
| Exhaust Lobe Centerline | 113° |
| Exhaust Lift at TDC | 0.112" |
| Exhaust Open | 51° |
| Exhaust Close | 5° |
| Features | One Piece Pushrods |
| Units | Kit |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1393 | 7220P | Out of Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
