Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Race Series® Camshaft Kit - 1461 For Harley Motorcycles 2017-2026
MPN:
1461
SKU:
0925-1374
Feuling Oil Pump Corp.
Feuling Oil Pump Corp. Race Series® Camshaft Kit - 1461 For Harley Motorcycles 2017-2026
MPN:
1461
SKU:
0925-1374
Availability:
Only 4 left!

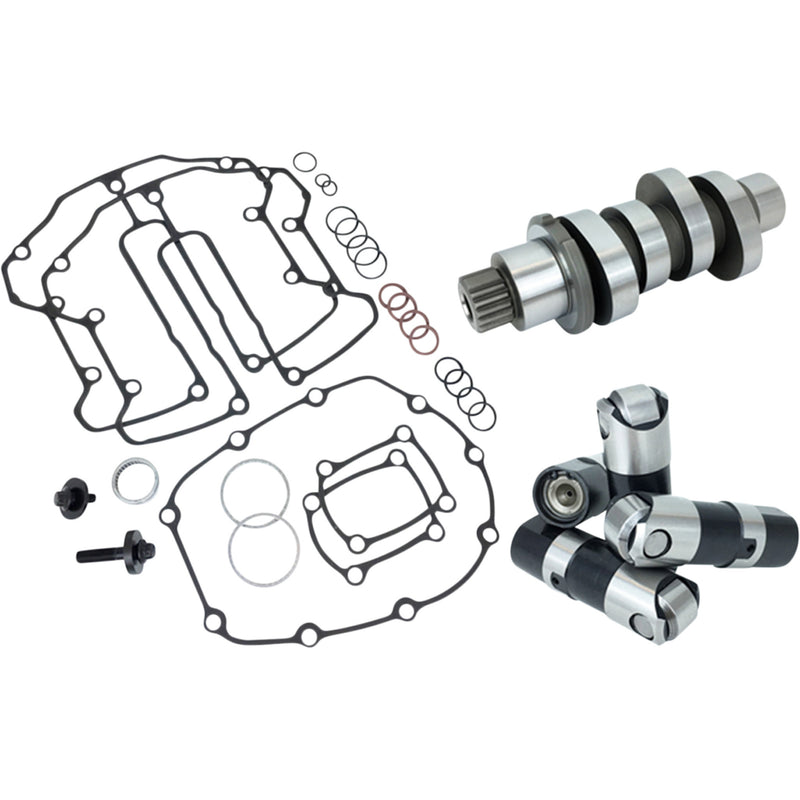

Kit includes Reaper® camshaft, Racer Series full travel hydraulic lifters with 0.200" total travel, gasket/o-ring kit that allows installation of Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods, ARP® cam/crank fasteners and cam instal kit
Made in the USA
Due to the unstable nature of 4-valve engine design with one rocker arm activating two valve springs, Feuling recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
Feuling fastener kit is recommended to help prevent cylinder head cracking; kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress of the rocker shaft standoffs.
Race Series lifters have a slower bleed down rate to handle steep ramped cam and heavy valvesprings, designed to increase engine RPM before valve float.
Not for '23-'24 models with 121" VVT motors.
Specs
Product Name
Camshaft Kit
Type
Chain Drive
Application
Exhaust / Intake
Model
Race Series®
Grind
538 Series
Intake Lift at TDC
0.180"
Intake Open
20.5°
Intake Lift
0.538"
Intake Duration
239°
Intake Lobe Centerline
99°
Intake Close
38.5°
Exhaust Lift
0.542"
Exhaust Duration
246°
Exhaust Lobe Centerline
105°
Exhaust Lift at TDC
0.157"
Exhaust Open
48°
Exhaust Close
18°
Units
Kit
Riding Style
Street
Original price
$699.95
-
Original price
$699.95
Original price
$699.95
$699.95
-
$699.95
Current price
$699.95
Product Details
Features
- Kit includes Reaper® camshaft, Racer Series full travel hydraulic lifters with 0.200" total travel, gasket/o-ring kit that allows installation of Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods, ARP® cam/crank fasteners and cam instal kit
- Made in the USA
- Due to the unstable nature of 4-valve engine design with one rocker arm activating two valve springs, Feuling recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
- Feuling fastener kit is recommended to help prevent cylinder head cracking; kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress of the rocker shaft standoffs.
- Race Series lifters have a slower bleed down rate to handle steep ramped cam and heavy valvesprings, designed to increase engine RPM before valve float.
- Not for '23-'24 models with 121" VVT motors.
Specs
| Product Name | Camshaft Kit |
| Type | Chain Drive |
| Application | Exhaust / Intake |
| Model | Race Series® |
| Grind | 538 Series |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Intake Lift | 0.538" |
| Intake Duration | 239° |
| Intake Lobe Centerline | 99° |
| Intake Close | 38.5° |
| Exhaust Lift | 0.542" |
| Exhaust Duration | 246° |
| Exhaust Lobe Centerline | 105° |
| Exhaust Lift at TDC | 0.157" |
| Exhaust Open | 48° |
| Exhaust Close | 18° |
| Units | Kit |
| Riding Style | Street |
Features
- Kit includes Reaper® camshaft, Racer Series full travel hydraulic lifters with 0.200" total travel, gasket/o-ring kit that allows installation of Feuling heavy-duty HP+ 0.0165" wall one-piece pushrods or factory one-piece pushrods, ARP® cam/crank fasteners and cam instal kit
- Made in the USA
- Due to the unstable nature of 4-valve engine design with one rocker arm activating two valve springs, Feuling recommends running one-piece pushrods over quick-install adjustable pushrods to maintain maximum cam/valve lift and reduce valvetrain harmonics and associated hydraulic lifter issues.
- Feuling fastener kit is recommended to help prevent cylinder head cracking; kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress of the rocker shaft standoffs.
- Race Series lifters have a slower bleed down rate to handle steep ramped cam and heavy valvesprings, designed to increase engine RPM before valve float.
- Not for '23-'24 models with 121" VVT motors.
Specs
| Product Name | Camshaft Kit |
| Type | Chain Drive |
| Application | Exhaust / Intake |
| Model | Race Series® |
| Grind | 538 Series |
| Intake Lift at TDC | 0.180" |
| Intake Open | 20.5° |
| Intake Lift | 0.538" |
| Intake Duration | 239° |
| Intake Lobe Centerline | 99° |
| Intake Close | 38.5° |
| Exhaust Lift | 0.542" |
| Exhaust Duration | 246° |
| Exhaust Lobe Centerline | 105° |
| Exhaust Lift at TDC | 0.157" |
| Exhaust Open | 48° |
| Exhaust Close | 18° |
| Units | Kit |
| Riding Style | Street |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0925-1374 | 1461 | In Stock |
