Product Details
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Units | Each |
| Size | Standard |
| Type | Fork |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Chrome |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.

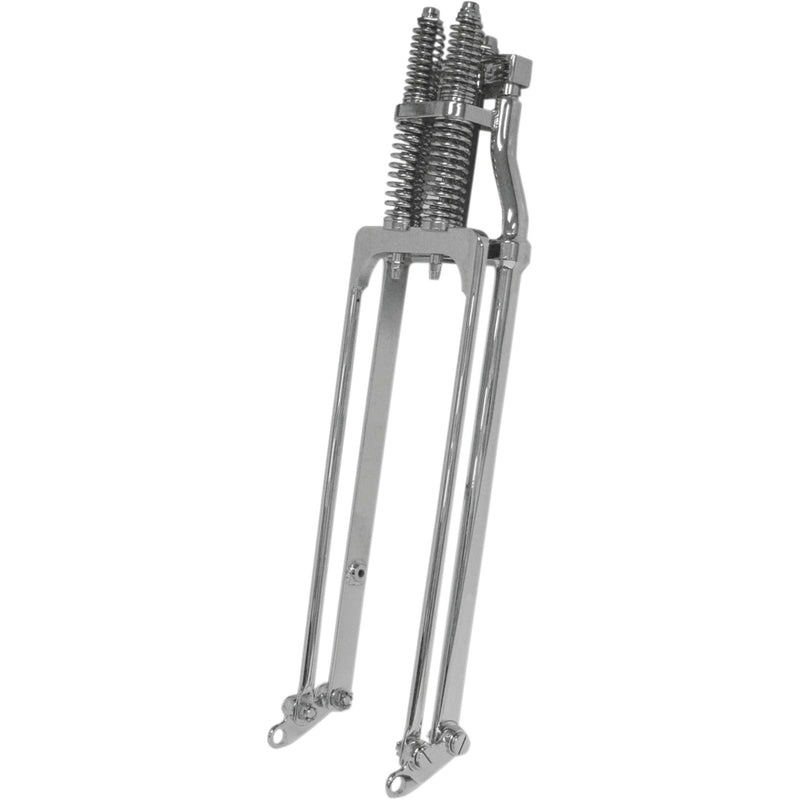

Chrome - Standard Length | 0401-0074 | 0401-0074
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Units | Each |
| Size | Standard |
| Type | Fork |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Chrome |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
Chrome - Extends +2" | 0401-0075 | 0401-0075
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Type | Fork |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Chrome |
| Size | Lifts 2.00" |
| Units | Each |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
Chrome - Extends +4" | 0401-0076 | 0401-0076
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Product Name | Springer |
| Size | Lifts 4.00" |
| Type | Fork |
| Color/Finish | Chrome |
| Riding Style | Street |
| Units | Each |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.

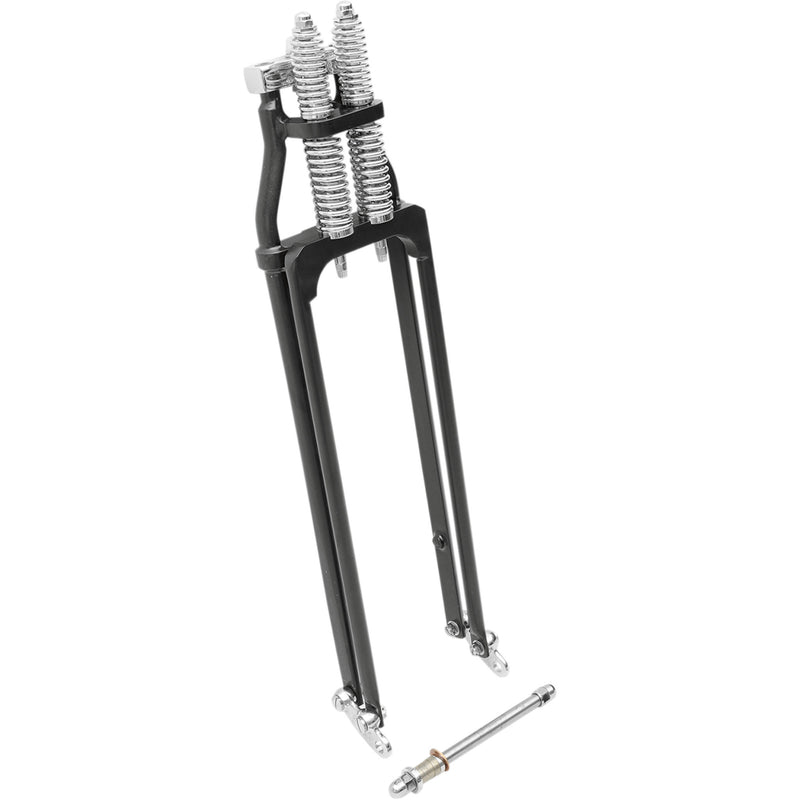

Black - Standard Length | 0401-0079 | 0401-0079
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Type | Fork |
| Units | Each |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Black |
| Size | Standard |
Part Notes
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
Black - Extends +4" | 0401-0081 | 0401-0081
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Color/Finish | Black |
| Size | Lifts 4.00" |
| Units | Each |
| Product Name | Springer |
| Riding Style | Street |
| Type | Fork |
Part Notes
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Units | Each |
| Size | Standard |
| Type | Fork |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Chrome |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
| Product Style | Store SKU | MFR. Product # | Availability |
|---|---|---|---|
| Chrome - Standard Length | 0401-0074 | 0401-0074 | 0401-0074 | 0401-0074 | Out of Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Specs
| Units | Each |
| Size | Standard |
| Type | Fork |
| Product Name | Springer |
| Riding Style | Street |
| Color/Finish | Chrome |
Part Notes
- These spring forks will not fit European models. The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end.
Part Numbers
| Product Style | Store SKU | MFR. Product # | Availability |
|---|---|---|---|
| Chrome - Standard Length | 0401-0074 | 0401-0074 | 0401-0074 | 0401-0074 | Out of Stock |
