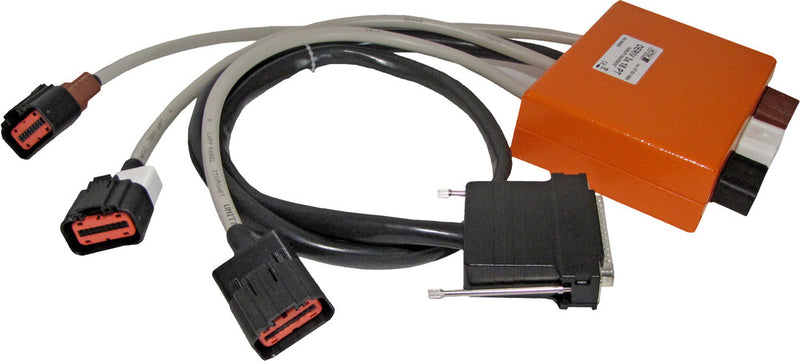

Diag4 Bike Parallel Diagnostic System 3X18 PIN Adapter - AT 531 4080 For Harley Softail 2018-2019
Diag4 Bike Parallel Diagnostic System 3X18 PIN Adapter - AT 531 4080 For Harley Softail 2018-2019
Product Details
Parallel diagnostics are designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules. Measurements can be made on running engines. The system consists of a wiring harness adapter and breakout box. The breakout box is inserted between EFI module and motorcycle´s wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clearly arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators. Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents.
| 2018-2019 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2018-2019 | Harley-Davidson | Softail Breakout FXBR |
| 2018-2019 | Harley-Davidson | Softail Deluxe FLDE |
| 2018-2019 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
| 2018-2019 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2018-2019 | Harley-Davidson | Softail Fat Boy FLFB |
| 2018-2019 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2018-2019 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2018-2019 | Harley-Davidson | Softail Low Rider FXLR |
| 2018-2019 | Harley-Davidson | Softail Slim FLSL |
| 2018-2019 | Harley-Davidson | Softail Sport Glide FLSB |
| 2018-2019 | Harley-Davidson | Softail Street Bob FXBB |
| 2019 | Harley-Davidson | FXDR 114 (FXDRS) |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Product Description
Parallel diagnostics are designed for measuring input and output signals from the electronic fuel injection module (EFI) and other modules. Measurements can be made on running engines. The system consists of a wiring harness adapter and breakout box. The breakout box is inserted between EFI module and motorcycle´s wiring harness so that the system continues to function as normal. Monitoring points for all connector pins of the EFI module are clearly arranged on the breakout box. It is possible to measure signals and waveforms from all systems and actuators. Disconnecting the ECU from the breakout box allows quick and reliable check of the integrity of the wiring harness in respect to continuity, and leakage currents.
| 2018-2019 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2018-2019 | Harley-Davidson | Softail Breakout FXBR |
| 2018-2019 | Harley-Davidson | Softail Deluxe FLDE |
| 2018-2019 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
| 2018-2019 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2018-2019 | Harley-Davidson | Softail Fat Boy FLFB |
| 2018-2019 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2018-2019 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2018-2019 | Harley-Davidson | Softail Low Rider FXLR |
| 2018-2019 | Harley-Davidson | Softail Slim FLSL |
| 2018-2019 | Harley-Davidson | Softail Sport Glide FLSB |
| 2018-2019 | Harley-Davidson | Softail Street Bob FXBB |
| 2019 | Harley-Davidson | FXDR 114 (FXDRS) |
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 867-02029 | AT 531 4080 | In Stock |
