Daytona Twin Tec Llc
DAYTONA TWIN TEC LLC 1022-0054 112001 Wego III Wide-Band AFR (Air/Fuel Ratio) Monitoring System WEGO III™ AFR System Sensor Kit
MPN:
112001
SKU:
1022-0054
Daytona Twin Tec Llc
DAYTONA TWIN TEC LLC 1022-0054 112001 Wego III Wide-Band AFR (Air/Fuel Ratio) Monitoring System WEGO III™ AFR System Sensor Kit
MPN:
112001
SKU:
1022-0054
Availability:
7 in stock, ready to be shipped

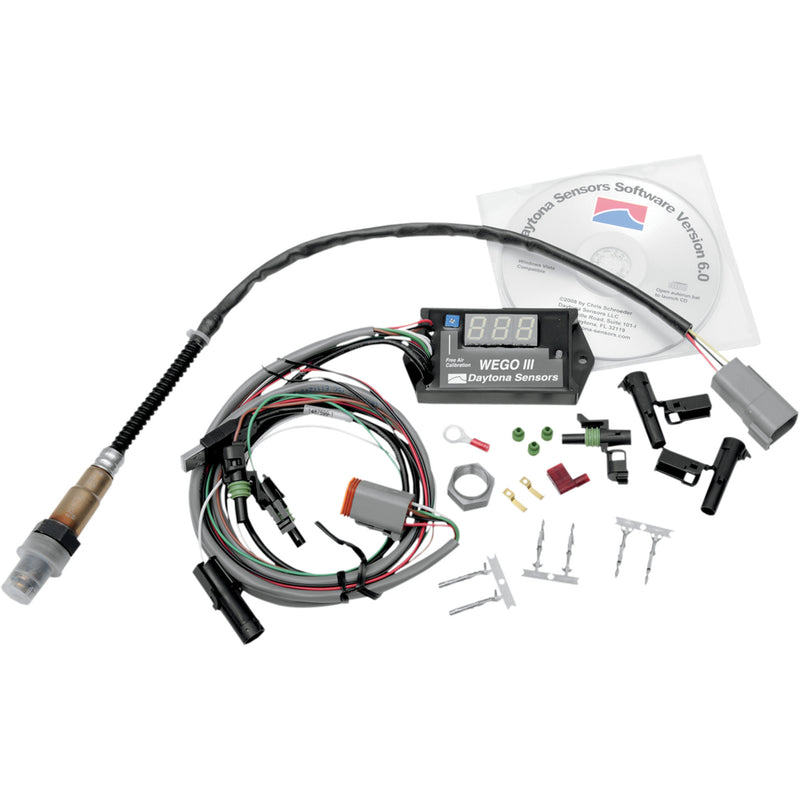

Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
Easy free-air calibration procedure corrects for sensor aging effects
Complete fuel/air ratio metering system with built-in data logging
0-5V analog AFR output for interface to dyno instrumentation
Compact size: 4" L x 2" W x .5" H
Made in the USA
Specs
Type
Wide-Band O2
Product Name
Sensor Kit
Style
Single Channel
Color/Finish
Black
Units
Kit
Color/Finish
Gray
Features
18 mm Sensor
Model
WEGO III
Riding Style
Street
Original price
$632.95
-
Original price
$632.95
Original price
$632.95
$632.95
-
$632.95
Current price
$632.95
Product Details
Features
- Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
- WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
- Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
- Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
- Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
- Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
- Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
- Easy free-air calibration procedure corrects for sensor aging effects
- Complete fuel/air ratio metering system with built-in data logging
- 0-5V analog AFR output for interface to dyno instrumentation
- Compact size: 4" L x 2" W x .5" H
- Made in the USA
Specs
| Type | Wide-Band O2 |
| Product Name | Sensor Kit |
| Style | Single Channel |
| Color/Finish | Black |
| Units | Kit |
| Color/Finish | Gray |
| Features | 18 mm Sensor |
| Model | WEGO III |
| Riding Style | Street |
Features
- Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
- WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
- Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
- Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
- Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
- Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
- Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
- Easy free-air calibration procedure corrects for sensor aging effects
- Complete fuel/air ratio metering system with built-in data logging
- 0-5V analog AFR output for interface to dyno instrumentation
- Compact size: 4" L x 2" W x .5" H
- Made in the USA
Specs
| Type | Wide-Band O2 |
| Product Name | Sensor Kit |
| Style | Single Channel |
| Color/Finish | Black |
| Units | Kit |
| Color/Finish | Gray |
| Features | 18 mm Sensor |
| Model | WEGO III |
| Riding Style | Street |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1022-0054 | 112001 | In Stock |
Product Description
Features
- Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
- WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
- Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
- Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
- Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
- Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
- Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
- Easy free-air calibration procedure corrects for sensor aging effects
- Complete fuel/air ratio metering system with built-in data logging
- 0-5V analog AFR output for interface to dyno instrumentation
- Compact size: 4" L x 2" W x .5" H
- Made in the USA
Specs
| Type | Wide-Band O2 |
| Product Name | Sensor Kit |
| Style | Single Channel |
| Color/Finish | Black |
| Units | Kit |
| Color/Finish | Gray |
| Features | 18 mm Sensor |
| Model | WEGO III |
| Riding Style | Street |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1022-0054 | 112001 | In Stock |
