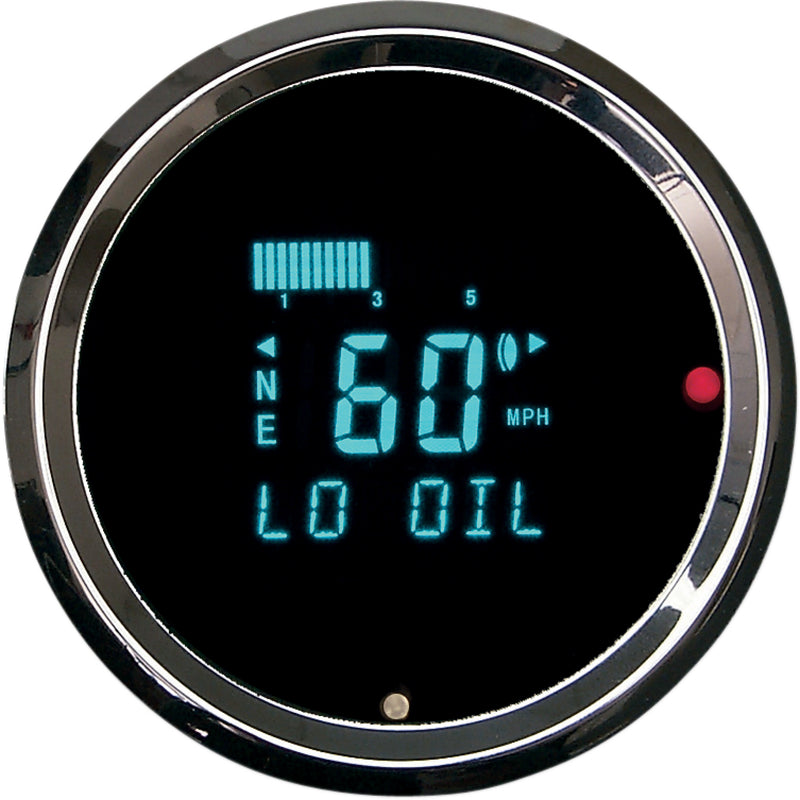

DAKOTA DIGITAL 2212-0101 HLY-3016 3016 Series Digital Speedometer/Tachometer 3016 Series Odyssey II Speedometer/Tachometer with Indicators

Features

• High-quality digital instruments that offer stable, accurate and easy-to-view readings
• Teal display offers high-contrast visibility, even in sunlight
• All gauges have machined aluminum housings, chrome front bezels and non-glare, scratch-resistant lenses
• Adjustable 255 mph speedometer calibrates easily to almost any gearing and tire size combination; push button calibration
• Tachometer displays as bar graph and features an adjustable shift point warning
• Tachometer calibration is easily adjusted for combinations of one to 15 cylinders without using coils
• Odometer has two resettable trip meters, an hour meter and miles-to-service meter with warning
• Features turn signal, neutral, low oil pressure, low voltage, high beam and security indicators
• Performs calculations and displays high speed recall, high rpm recall, 0-60 timer and 1/4-mile time and speed
• Displays “check engine” and “wait to start” lights
• Gear position indicator works with 3- to 6-speed transmissions
• Automatic turn signal canceling compatible
• 3-3/8” speedometer/tachometer will fit the 96-06 FLTR, FLHT fairing.

Specs

Model	3016 Model
Outside Diameter	3-3/8"
Housing Color	Chrome
Style	3000 Series
Type	Digital Tachometer
Units	Each
Readout Color	Blue
Calibration	0 mph - 255 mph
Calibration	0 rpm - 13,000 rpm
Housing Material	Aluminum
Riding Style	Street
Product Name	Gauge
Type	Digital Speedometer
Face Color	Black

Part Notes

• Use the same speed sensors as Part Number 2210-0038.

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
