Comet

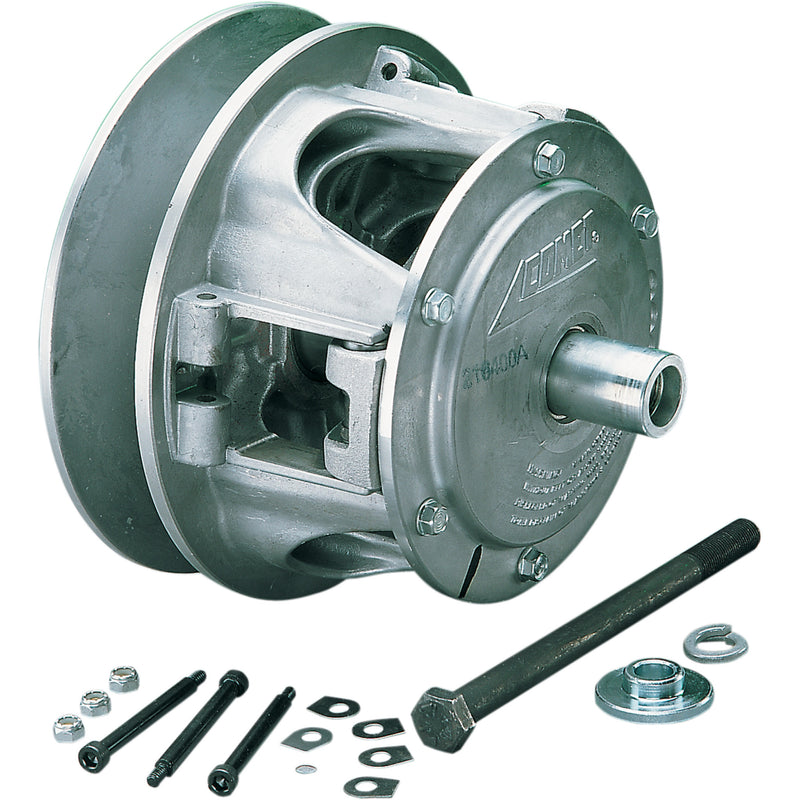

COMET 1140-0086 219503A 108-EXP High-Performance Clutch 108 EXP Clutch
MPN:
219503A
SKU:
1140-0086
Comet
COMET 1140-0086 219503A 108-EXP High-Performance Clutch 108 EXP Clutch
MPN:
219503A
SKU:
1140-0086
Availability:
Out of stock
Sold out
Original price
$412.95
-
Original price
$412.95
Original price
$412.95
$412.95
-
$412.95
Current price
$412.95
Product Details
Features
- Tried, tested and built to handle high-horsepower engines
- Consistently smooth shifting even after hours of use
- Wider rollers for increased bearing area (33% more)
- Features a bushing in the movable face
- Uncalibrated clutches are sold without cam arms and spring
- 108-EXP clutches use the same cam arms and spring as the 108-C
- Change clutch to accept 1-7/16” belt width by installing one spacer washer under the spider washers
- A flush bore depth indicates the taper begins exactly at the inner edge of the fixed face casting
- 1-3/8” standard belt width and 1-1/4” optional belt width
- Polaris gear bosses
- Accepts OEM ring gear for electric start models
- Not for use on models with 33 mm shaft
Specs
| Style | Tapered |
| Units | Each |
| Model | 108-EXP |
| Bore Size | 30 mm |
| Product Name | Clutch |
| Riding Style | Snow |
| Style | Flush |
| Type | Centrifugal |
Part Notes
- Accepts OEM ring gear for electric start models. Not for use on models with 33mm shaft.
Features
- Tried, tested and built to handle high-horsepower engines
- Consistently smooth shifting even after hours of use
- Wider rollers for increased bearing area (33% more)
- Features a bushing in the movable face
- Uncalibrated clutches are sold without cam arms and spring
- 108-EXP clutches use the same cam arms and spring as the 108-C
- Change clutch to accept 1-7/16” belt width by installing one spacer washer under the spider washers
- A flush bore depth indicates the taper begins exactly at the inner edge of the fixed face casting
- 1-3/8” standard belt width and 1-1/4” optional belt width
- Polaris gear bosses
- Accepts OEM ring gear for electric start models
- Not for use on models with 33 mm shaft
Specs
| Style | Tapered |
| Units | Each |
| Model | 108-EXP |
| Bore Size | 30 mm |
| Product Name | Clutch |
| Riding Style | Snow |
| Style | Flush |
| Type | Centrifugal |
Part Notes
- Accepts OEM ring gear for electric start models. Not for use on models with 33mm shaft.
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1140-0086 | 219503A | Out of Stock |
Product Description
Features
- Tried, tested and built to handle high-horsepower engines
- Consistently smooth shifting even after hours of use
- Wider rollers for increased bearing area (33% more)
- Features a bushing in the movable face
- Uncalibrated clutches are sold without cam arms and spring
- 108-EXP clutches use the same cam arms and spring as the 108-C
- Change clutch to accept 1-7/16” belt width by installing one spacer washer under the spider washers
- A flush bore depth indicates the taper begins exactly at the inner edge of the fixed face casting
- 1-3/8” standard belt width and 1-1/4” optional belt width
- Polaris gear bosses
- Accepts OEM ring gear for electric start models
- Not for use on models with 33 mm shaft
Specs
| Style | Tapered |
| Units | Each |
| Model | 108-EXP |
| Bore Size | 30 mm |
| Product Name | Clutch |
| Riding Style | Snow |
| Style | Flush |
| Type | Centrifugal |
Part Notes
- Accepts OEM ring gear for electric start models. Not for use on models with 33mm shaft.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 1140-0086 | 219503A | Out of Stock |
