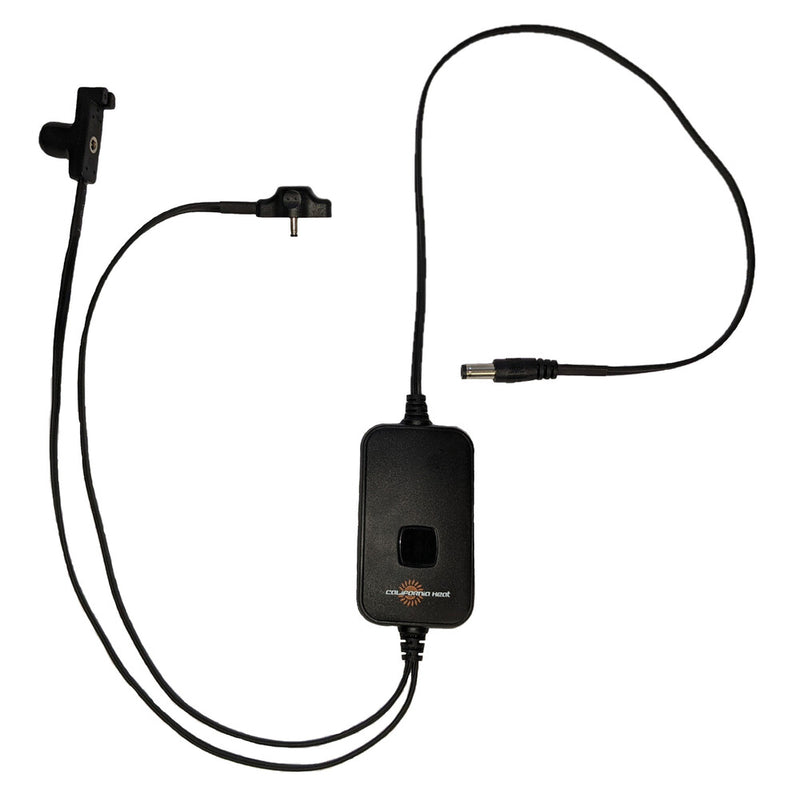

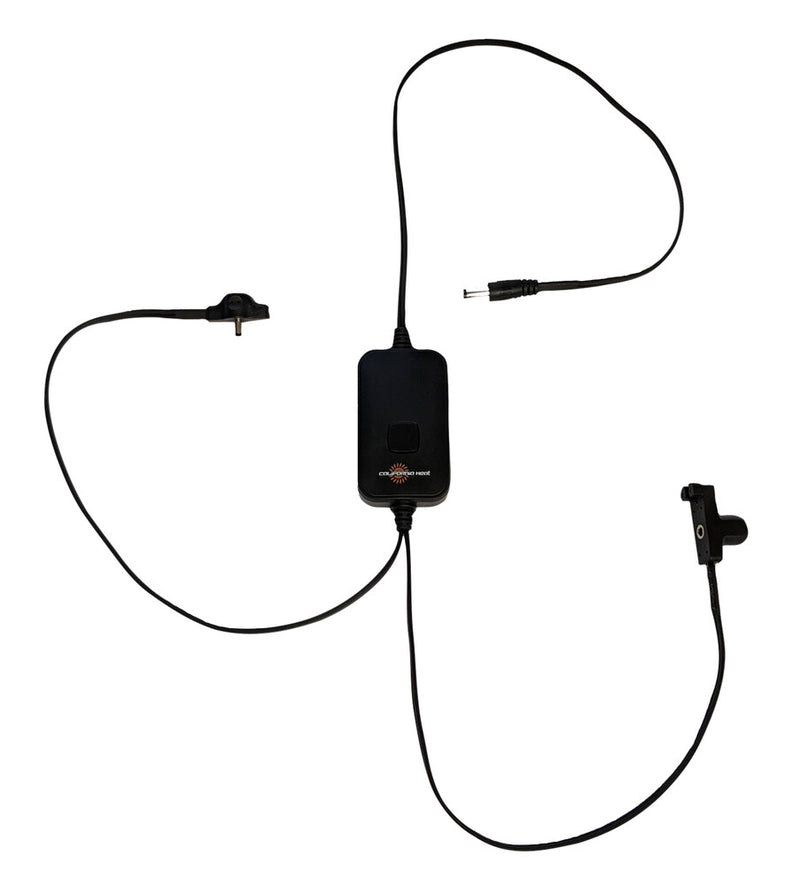

California Heat Hybrid Heat Controller - TC12-7

With the Hybrid Heat Controller you can now power 7V battery-powered heated gear using a Motorcycle, Powersport Vehicle, or any 12V Accessory Port

Features

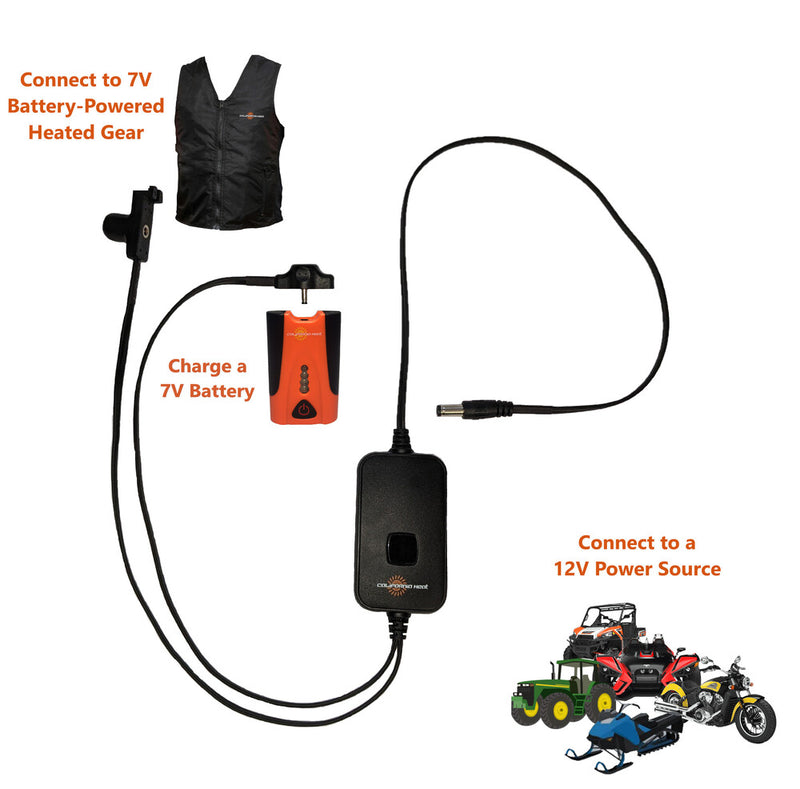

• 3 WAYS TO USE
• Use a 12V power source to heat a 7V battery-powered item OR a pair of gloves/socks (using a 7V y-harness)
• Use a 12V power source to charge a 7V battery
• Do both at the same time!
• INFO
• Connect to a 12V motorcycle or vehicle battery using a 12V Battery Harness, 12V Accessory Plug, or 12V SAE-COAX Female
• Compatible with other 7V battery-powered brands that use the same plugs, including push-button heated gear
• Charge other brand 7V batteries that use the same plugs
• A dead (fully discharged) 7V battery takes 4-5 hours to fully charge while connected to a 12V power source
• If the controller is disconnected from a 12V power source, the 7V battery will begin powering the 7V clothing - simply turn on the battery then use the controller to change the temperature settings
• Three heat settings
• SPECS
• Input - Connected to 12V Battery: 11V-16V DC
• Output 1 - Charging 7V Battery: 8.4V 1.5A
• *Output 1 becomes a 7V Input powering Output 2 when it is connected to a charged 7V battery but NOT connected to a 12V power source
• Output 2 - Powering 7V Heated Product: 7V 2A max with three output settings (33%-66%-99%)
• REQUIRED FOR OPERATION (sold separately)

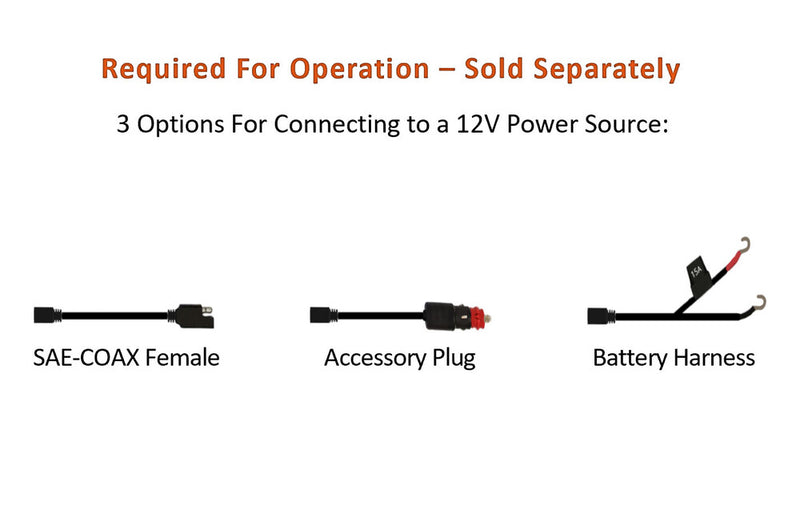

• 3 Options For Connecting to a 12V Power Source: 12V Battery Harness OR 12V Accessory Plug OR 12V SAE-COAX Female
• WARRANTY
• All controllers are covered by a 2 year warranty
