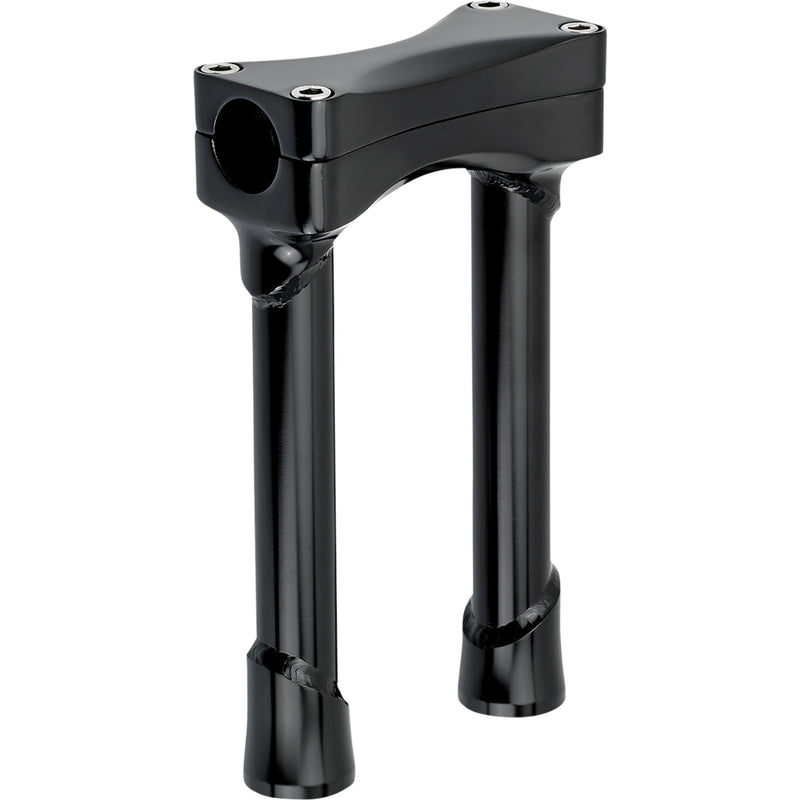

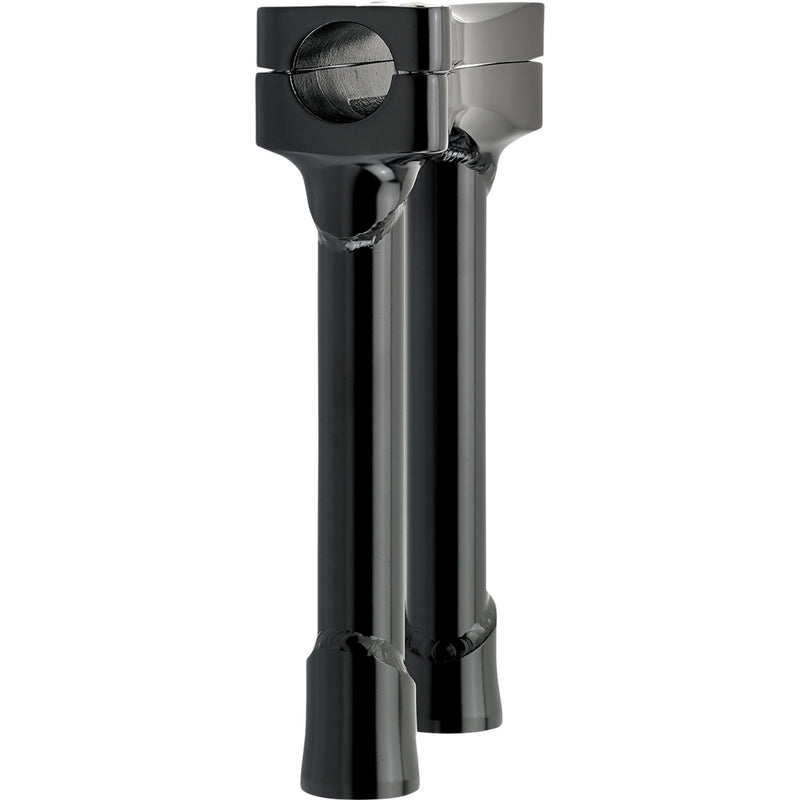

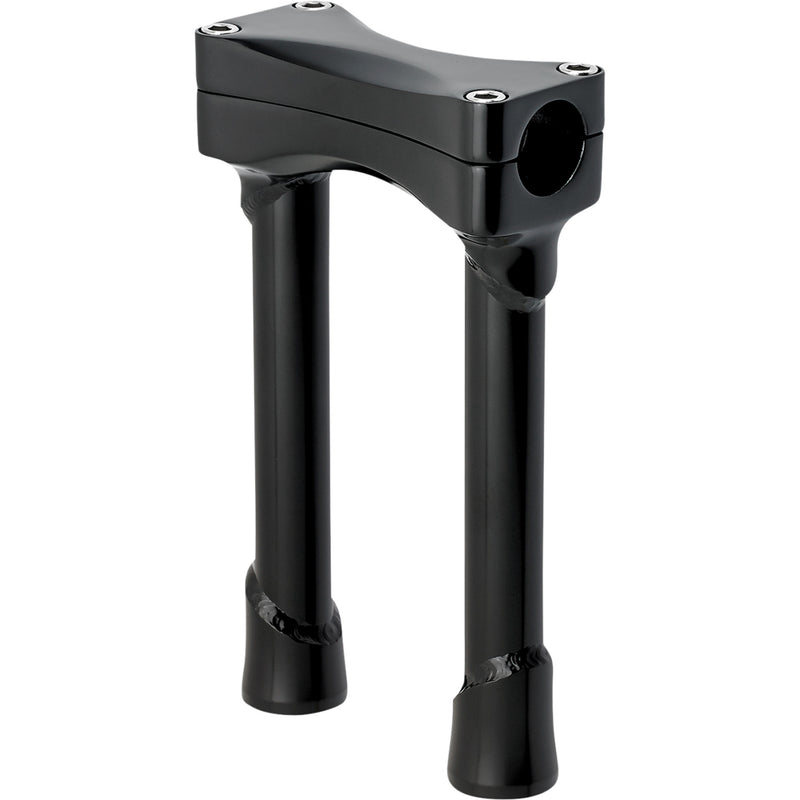

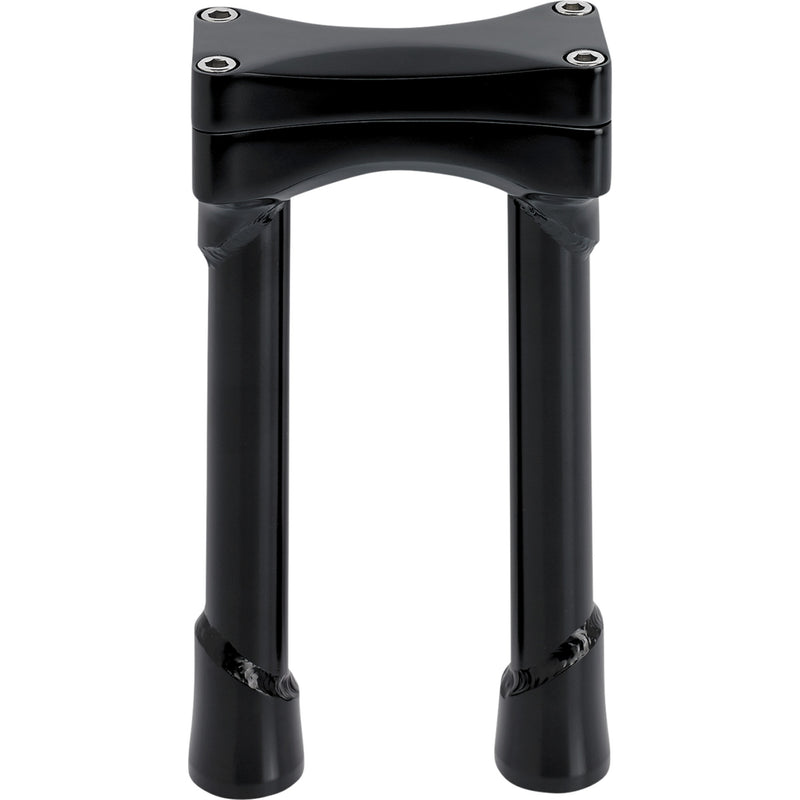

BILTWELL 0602-1114 6413-201-08 Murdock O/S Risers 8" - black
MPN:
6413-201-08
SKU:
0602-1114
Biltwell
BILTWELL 0602-1114 6413-201-08 Murdock O/S Risers 8" - black
MPN:
6413-201-08
SKU:
0602-1114
Availability:
Out of stock
Sold out
Original price
$309.95
-
Original price
$309.95
Original price
$309.95
$309.95
-
$309.95
Current price
$309.95
Product Details
Features
- Investment-cast one-piece steel bar clamp accepts 1-1/8" O.D. handlebars
- 0.120" (3 mm) wall x 1" O.D. 4130 chromoly uprights
- CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
- Mounting holes on 3.5" centers to fit most stock and select aftermarket H-D fork trees
- Pullback Murdock risers feature mandrel-bent uprights for two inches of rearward bar offset—perfect for reducing reach for shorter riders
- TIG welded and hand polished before polishing
- Stainless-steel 5/16-18 t.p.i. bar clamp hardware
Specs
| Material | Steel |
| Model | Murdock |
| Rise | 20,5 cm (8") |
| Style | Straight |
| Product Name | Riser |
| Rise | 20.5 cm |
| Clamping Diameter | 28.6 mm |
| Color/Finish | Satin |
| Pullback | 0 mm |
| Riding Style | Street |
| Pullback | 0 mm (0") |
| Type | Handlebar |
| Finish | Satin |
| Rise | 8" |
| Color/Finish | Black |
| Pullback | 0" |
| Units | Pair |
| Base Color | Black |
| Clamping Diameter | 28,6 mm (1-1/8") |
| Clamping Diameter | 1-1/8" |
Features
- Investment-cast one-piece steel bar clamp accepts 1-1/8" O.D. handlebars
- 0.120" (3 mm) wall x 1" O.D. 4130 chromoly uprights
- CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
- Mounting holes on 3.5" centers to fit most stock and select aftermarket H-D fork trees
- Pullback Murdock risers feature mandrel-bent uprights for two inches of rearward bar offset—perfect for reducing reach for shorter riders
- TIG welded and hand polished before polishing
- Stainless-steel 5/16-18 t.p.i. bar clamp hardware
Specs
| Material | Steel |
| Model | Murdock |
| Rise | 20,5 cm (8") |
| Style | Straight |
| Product Name | Riser |
| Rise | 20.5 cm |
| Clamping Diameter | 28.6 mm |
| Color/Finish | Satin |
| Pullback | 0 mm |
| Riding Style | Street |
| Pullback | 0 mm (0") |
| Type | Handlebar |
| Finish | Satin |
| Rise | 8" |
| Color/Finish | Black |
| Pullback | 0" |
| Units | Pair |
| Base Color | Black |
| Clamping Diameter | 28,6 mm (1-1/8") |
| Clamping Diameter | 1-1/8" |
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0602-1114 | 6413-201-08 | Out of Stock |
Product Description
Features
- Investment-cast one-piece steel bar clamp accepts 1-1/8" O.D. handlebars
- 0.120" (3 mm) wall x 1" O.D. 4130 chromoly uprights
- CNC lathe-turned mounting bases accept 1/2-13 t.p.i. stock and aftermarket mounting hardware
- Mounting holes on 3.5" centers to fit most stock and select aftermarket H-D fork trees
- Pullback Murdock risers feature mandrel-bent uprights for two inches of rearward bar offset—perfect for reducing reach for shorter riders
- TIG welded and hand polished before polishing
- Stainless-steel 5/16-18 t.p.i. bar clamp hardware
Specs
| Material | Steel |
| Model | Murdock |
| Rise | 20,5 cm (8") |
| Style | Straight |
| Product Name | Riser |
| Rise | 20.5 cm |
| Clamping Diameter | 28.6 mm |
| Color/Finish | Satin |
| Pullback | 0 mm |
| Riding Style | Street |
| Pullback | 0 mm (0") |
| Type | Handlebar |
| Finish | Satin |
| Rise | 8" |
| Color/Finish | Black |
| Pullback | 0" |
| Units | Pair |
| Base Color | Black |
| Clamping Diameter | 28,6 mm (1-1/8") |
| Clamping Diameter | 1-1/8" |
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| 0602-1114 | 6413-201-08 | Out of Stock |
