Availability:
17 in stock, ready to be shipped

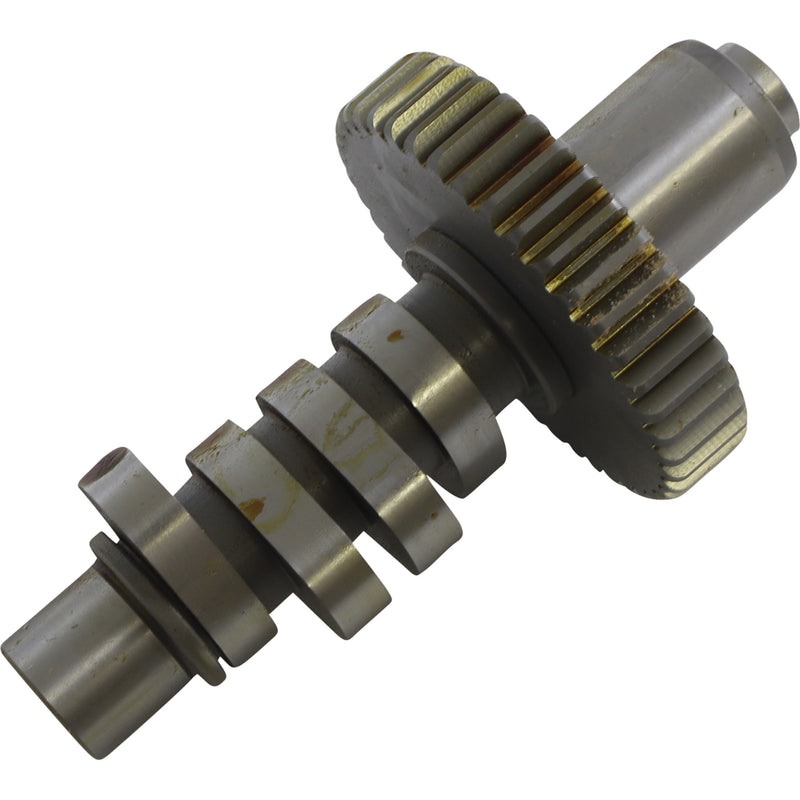

More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
Made in the USA
Must check coil bind, valve to valve clearance, and valve to piston clearance.
On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
Exhaust Close
26°
Intake Lift
0.450"
Product Name
Cam
Units
Each
Application
Exhaust
Exhaust Lift at TDC
Shovel: 0.142" Pan: 0.150"
Intake Open
21°
Exhaust Duration
256°
Riding Style
Street
Type
Gear
Intake Duration
244°
Intake Close
50°
Exhaust Open
43°
Intake Lift at TDC
Shovel: 0.156" Pan: 0.164"
Exhaust Lift
0.450"
Grind
AB
Application
Intake
Part Notes
Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.
Suitable for hydraulic lifters.
Original price
$251.95
-
Original price
$251.95
Original price
$251.95
$251.95
-
$251.95
Current price
$251.95
Product Details
Features
- More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
- Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
- Made in the USA
- Must check coil bind, valve to valve clearance, and valve to piston clearance.
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Exhaust Close | 26° |
| Intake Lift | 0.450" |
| Product Name | Cam |
| Units | Each |
| Application | Exhaust |
| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
| Intake Open | 21° |
| Exhaust Duration | 256° |
| Riding Style | Street |
| Type | Gear |
| Intake Duration | 244° |
| Intake Close | 50° |
| Exhaust Open | 43° |
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
| Exhaust Lift | 0.450" |
| Grind | AB |
| Application | Intake |
Part Notes
- Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.
- Suitable for hydraulic lifters.
Features
- More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
- Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
- Made in the USA
- Must check coil bind, valve to valve clearance, and valve to piston clearance.
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Exhaust Close | 26° |
| Intake Lift | 0.450" |
| Product Name | Cam |
| Units | Each |
| Application | Exhaust |
| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
| Intake Open | 21° |
| Exhaust Duration | 256° |
| Riding Style | Street |
| Type | Gear |
| Intake Duration | 244° |
| Intake Close | 50° |
| Exhaust Open | 43° |
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
| Exhaust Lift | 0.450" |
| Grind | AB |
| Application | Intake |
Part Notes
- Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.
- Suitable for hydraulic lifters.
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199347 | 212320 | In Stock |
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- More mid-range and top-end power for street and drag bikes. These cams work with solid or hydraulic lifters, and the idle remains unaffected up to 6,000 rpm with stock valve springs
- Cams are computer designed and precision ground from alloy steel billets on Landis CNC cam grinders
- Made in the USA
- Must check coil bind, valve to valve clearance, and valve to piston clearance.
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear, and the breather valve gear was changed. These components are not interchangeable with earlier-style components unless replaced in set only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Exhaust Close | 26° |
| Intake Lift | 0.450" |
| Product Name | Cam |
| Units | Each |
| Application | Exhaust |
| Exhaust Lift at TDC | Shovel: 0.142" Pan: 0.150" |
| Intake Open | 21° |
| Exhaust Duration | 256° |
| Riding Style | Street |
| Type | Gear |
| Intake Duration | 244° |
| Intake Close | 50° |
| Exhaust Open | 43° |
| Intake Lift at TDC | Shovel: 0.156" Pan: 0.164" |
| Exhaust Lift | 0.450" |
| Grind | AB |
| Application | Intake |
Part Notes
- Bolt-in street cam has an "A" intake and a long duration exhaust for cooler running and high-end power.
- Suitable for hydraulic lifters.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199347 | 212320 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
