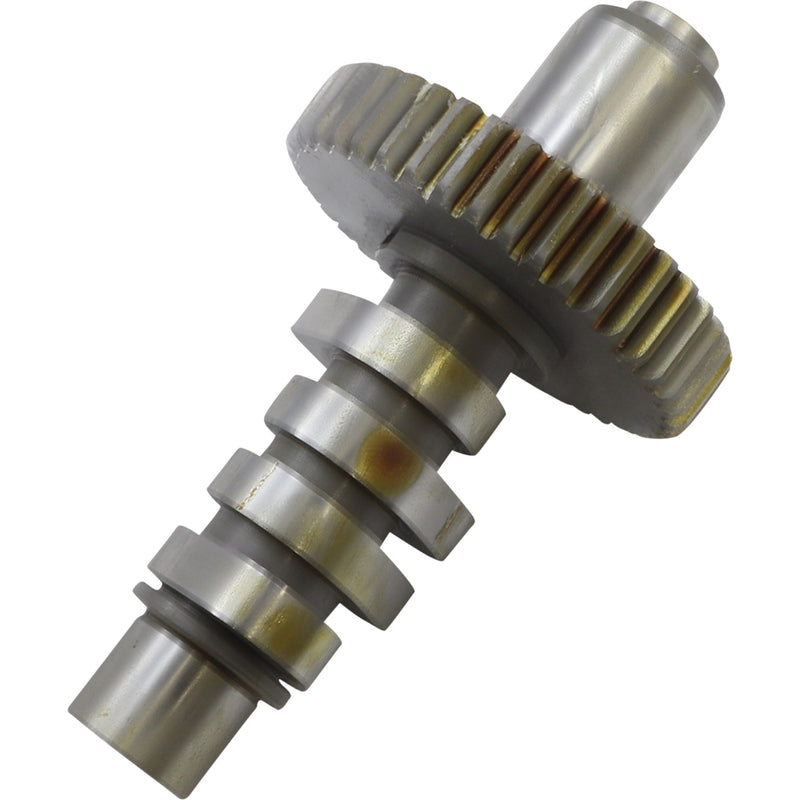

Product Details
Features
- Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
- Designed for hydraulics, but could be run with solids
- Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
- Made in the USA
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Application | Intake |
| Grind | #1 |
| Intake Close | 36° |
| Exhaust Duration | 232° |
| Exhaust Lift at TDC | 0.136" |
| Units | Each |
| Application | Exhaust |
| Intake Open | 16° |
| Exhaust Close | 16° |
| Product Name | Cam |
| Intake Duration | 232° |
| Intake Lift at TDC | 0.136" |
| Riding Style | Street |
| Exhaust Lift | Shovel: 0.427" Pan: 0.450" |
| Exhaust Open | 36° |
| Intake Lift | Shovel: 0.427" Pan: 0.450" |
Part Notes
- For '70 - Early '77 Shovelhead.
Features
- Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
- Designed for hydraulics, but could be run with solids
- Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
- Made in the USA
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Application | Intake |
| Grind | #1 |
| Intake Close | 36° |
| Exhaust Duration | 232° |
| Exhaust Lift at TDC | 0.136" |
| Units | Each |
| Application | Exhaust |
| Intake Open | 16° |
| Exhaust Close | 16° |
| Product Name | Cam |
| Intake Duration | 232° |
| Intake Lift at TDC | 0.136" |
| Riding Style | Street |
| Exhaust Lift | Shovel: 0.427" Pan: 0.450" |
| Exhaust Open | 36° |
| Intake Lift | Shovel: 0.427" Pan: 0.450" |
Part Notes
- For '70 - Early '77 Shovelhead.
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199282 | 212140 | In Stock |
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
Product Description
Features
- Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
- Designed for hydraulics, but could be run with solids
- Grind #1 is the low-compression version of an "A" grind cam for 74" and 80" models
- Made in the USA
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Application | Intake |
| Grind | #1 |
| Intake Close | 36° |
| Exhaust Duration | 232° |
| Exhaust Lift at TDC | 0.136" |
| Units | Each |
| Application | Exhaust |
| Intake Open | 16° |
| Exhaust Close | 16° |
| Product Name | Cam |
| Intake Duration | 232° |
| Intake Lift at TDC | 0.136" |
| Riding Style | Street |
| Exhaust Lift | Shovel: 0.427" Pan: 0.450" |
| Exhaust Open | 36° |
| Intake Lift | Shovel: 0.427" Pan: 0.450" |
Part Notes
- For '70 - Early '77 Shovelhead.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199282 | 212140 | In Stock |
Fitment
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
