Availability:
Only 3 left!
Manufactured with the help of a computer with cam design capabilities
Made from alloy steel billets and heat-treated processes are utilized
Made in the USA
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
'00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
Exhaust Lift at TDC
0.168"
Exhaust Open
54°
Intake Lift
0.510"
Intake Close
48°
Units
Pair
Exhaust Duration
252°
Intake Duration
248°
Exhaust Close
18°
Grind
50 Series
Intake Lift at TDC
0.184"
Riding Style
Street
Type
Chain Drive
Application
Exhaust
Application
Intake
Exhaust Lift
0.510"
Exhaust Lobe Centerline
108°
Intake Lobe Centerline
104°
Intake Open
20°

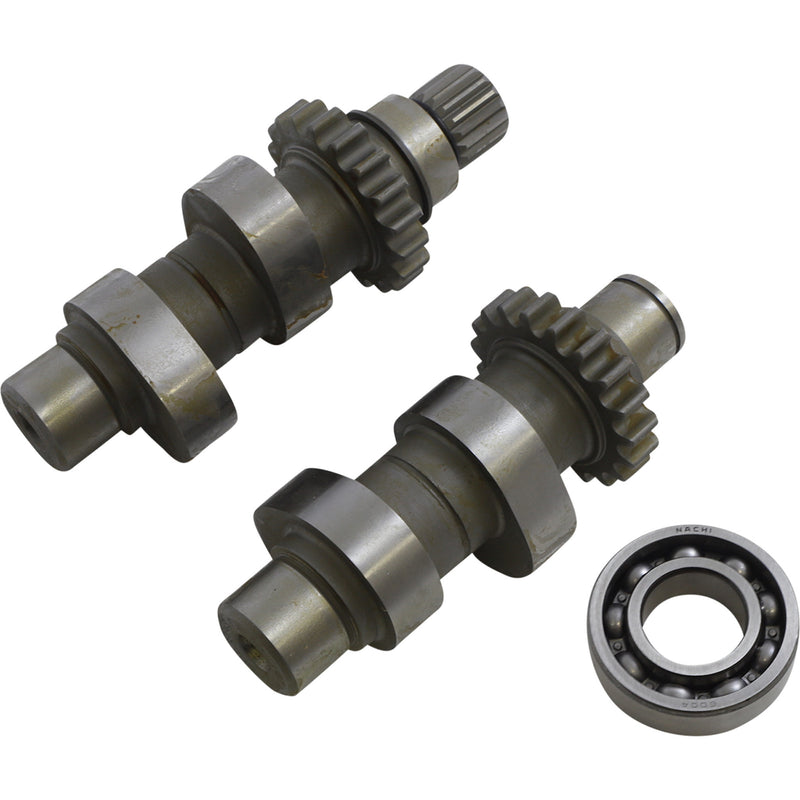

Product Name
Cam Set
Part Notes
Designed for 95"+ motors with 9.25:1 compression ratio to 9.50:1 compression ratio and stock heads.
For lighter bikes.
Cams work best at higher rpm of 2500-6000.
Can be used with stock valve springs and tappets.
Includes front cam support plate bearing.
'99 Twin Cam requires a splined cam drive sprocket.
Original price
$415.95
-
Original price
$415.95
Original price
$415.95
$415.95
-
$415.95
Current price
$415.95
Product Details
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Lift at TDC | 0.168" |
| Exhaust Open | 54° |
| Intake Lift | 0.510" |
| Intake Close | 48° |
| Units | Pair |
| Exhaust Duration | 252° |
| Intake Duration | 248° |
| Exhaust Close | 18° |
| Grind | 50 Series |
| Intake Lift at TDC | 0.184" |
| Riding Style | Street |
| Type | Chain Drive |
| Application | Exhaust |
| Application | Intake |
| Exhaust Lift | 0.510" |
| Exhaust Lobe Centerline | 108° |
| Intake Lobe Centerline | 104° |
| Intake Open | 20° |
| Product Name | Cam Set |
Part Notes
- Designed for 95"+ motors with 9.25:1 compression ratio to 9.50:1 compression ratio and stock heads.
- For lighter bikes.
- Cams work best at higher rpm of 2500-6000.
- Can be used with stock valve springs and tappets.
- Includes front cam support plate bearing.
- '99 Twin Cam requires a splined cam drive sprocket.
Product Description
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Lift at TDC | 0.168" |
| Exhaust Open | 54° |
| Intake Lift | 0.510" |
| Intake Close | 48° |
| Units | Pair |
| Exhaust Duration | 252° |
| Intake Duration | 248° |
| Exhaust Close | 18° |
| Grind | 50 Series |
| Intake Lift at TDC | 0.184" |
| Riding Style | Street |
| Type | Chain Drive |
| Application | Exhaust |
| Application | Intake |
| Exhaust Lift | 0.510" |
| Exhaust Lobe Centerline | 108° |
| Intake Lobe Centerline | 104° |
| Intake Open | 20° |
| Product Name | Cam Set |
Part Notes
- Designed for 95"+ motors with 9.25:1 compression ratio to 9.50:1 compression ratio and stock heads.
- For lighter bikes.
- Cams work best at higher rpm of 2500-6000.
- Can be used with stock valve springs and tappets.
- Includes front cam support plate bearing.
- '99 Twin Cam requires a splined cam drive sprocket.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199181 | 288150 | In Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
