Availability:
Out of stock
Manufactured with the help of a computer with cam design capabilities
Made from alloy steel billets and heat-treated processes are utilized
Made in the USA
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
'00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
Exhaust Close
8°
Exhaust Duration
264°
Units
Pair
Type
Chain Drive
Application
Exhaust
Exhaust Lobe Centerline
106°
Intake Open
10°
Exhaust Open
41°
Intake Lift
0.498"
Grind
21 Series
Riding Style
Street
Exhaust Lift
0.498"
Intake Lift at TDC
0.134"
Intake Lobe Centerline
100°
Application
Intake
Exhaust Lift at TDC
0.121"
Intake Close
30°
Intake Duration
255°

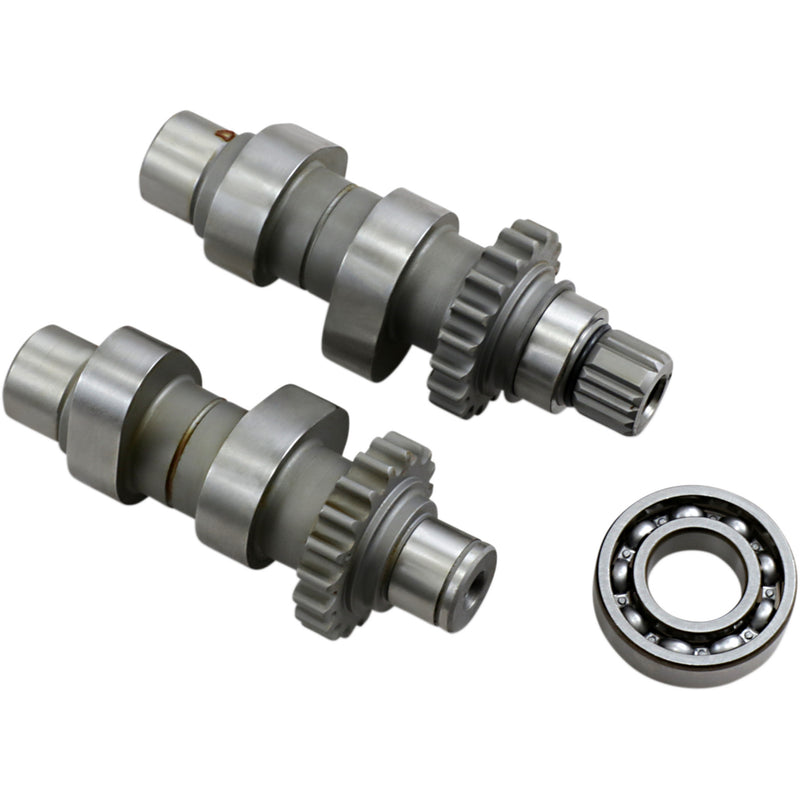

Product Name
Cam Set
Part Notes
Bolt-in cam for more torque with stock compression.
Runs best with low restriction exhausts (1700 - 5200 rpm).
Similar to the EV-23 cam.
Cams works well with fuel injection or carburetor models.
Can be used with stock valve springs and tappets.
Works well with carbs or fuel injection.
Includes front cam support plate bearing.
'99 Twin Cam require a splined cam drive sprocket.
Sold out
Original price
$415.95
-
Original price
$415.95
Original price
$415.95
$415.95
-
$415.95
Current price
$415.95
Product Details
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Close | 8° |
| Exhaust Duration | 264° |
| Units | Pair |
| Type | Chain Drive |
| Application | Exhaust |
| Exhaust Lobe Centerline | 106° |
| Intake Open | 10° |
| Exhaust Open | 41° |
| Intake Lift | 0.498" |
| Grind | 21 Series |
| Riding Style | Street |
| Exhaust Lift | 0.498" |
| Intake Lift at TDC | 0.134" |
| Intake Lobe Centerline | 100° |
| Application | Intake |
| Exhaust Lift at TDC | 0.121" |
| Intake Close | 30° |
| Intake Duration | 255° |
| Product Name | Cam Set |
Part Notes
- Bolt-in cam for more torque with stock compression.
- Runs best with low restriction exhausts (1700 - 5200 rpm).
- Similar to the EV-23 cam.
- Cams works well with fuel injection or carburetor models.
- Can be used with stock valve springs and tappets.
- Works well with carbs or fuel injection.
- Includes front cam support plate bearing.
- '99 Twin Cam require a splined cam drive sprocket.
Product Description
Features
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
Specs
| Exhaust Close | 8° |
| Exhaust Duration | 264° |
| Units | Pair |
| Type | Chain Drive |
| Application | Exhaust |
| Exhaust Lobe Centerline | 106° |
| Intake Open | 10° |
| Exhaust Open | 41° |
| Intake Lift | 0.498" |
| Grind | 21 Series |
| Riding Style | Street |
| Exhaust Lift | 0.498" |
| Intake Lift at TDC | 0.134" |
| Intake Lobe Centerline | 100° |
| Application | Intake |
| Exhaust Lift at TDC | 0.121" |
| Intake Close | 30° |
| Intake Duration | 255° |
| Product Name | Cam Set |
Part Notes
- Bolt-in cam for more torque with stock compression.
- Runs best with low restriction exhausts (1700 - 5200 rpm).
- Similar to the EV-23 cam.
- Cams works well with fuel injection or carburetor models.
- Can be used with stock valve springs and tappets.
- Works well with carbs or fuel injection.
- Includes front cam support plate bearing.
- '99 Twin Cam require a splined cam drive sprocket.
Part Numbers
| Store SKU | MFR. Product # | Availability |
|---|---|---|
| DS-199176 | 288121 | Out of Stock |
Fitment
This product is vehicle specific.
Select your vehicle to confirm fitment.
This Product Fits
Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
