Andrews

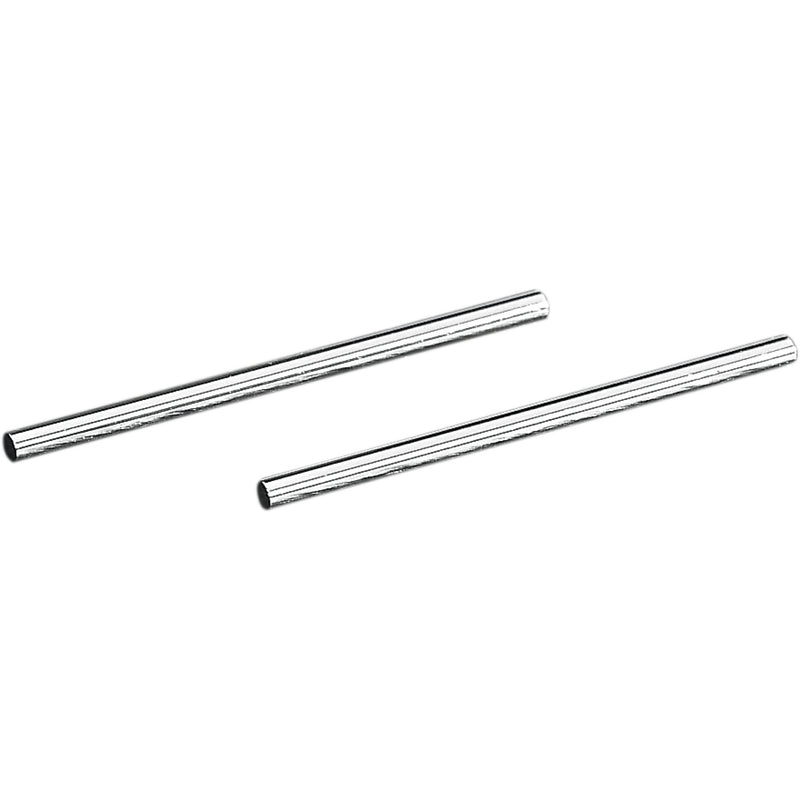

ANDREWS DS-199106 212116 Gauge Pins Gauge Pin - Cam Drive Gear - 0.108"
MPN:
212116
SKU:
DS-199106
Andrews
ANDREWS DS-199106 212116 Gauge Pins Gauge Pin - Cam Drive Gear - 0.108"
MPN:
212116
SKU:
DS-199106
Availability:
12 in stock, ready to be shipped
Used to measure the outside diameter of cam drive gears
Made in the USA
There are two basic differences between '90-'99 cam gear sizes and earlier years. The overall range of gear pin measurements (from the largest gears to the smallest) was reduced in '90 from .006" to .003". The large gears are the same size for both '84-'89 and '90-'99 (green and black color codes). Gear size measurements (over pins) are listed in the '90 H-D manual using .108" pins instead of .105" pins (as for earlier years). For the same gear, measurement over .108" pins will be approximately .012" larger than for .105" pins. For '92 engines, stock cam gears are interchangeable with earlier versions but gear outer diameters have been reduced by .025".
Specs
Product Name
Gauge Pin
Material
Alloy Steel
Outside Diameter
0.108"
Type
Cam Drive Gear
Units
Pair
Measurement System
SAE
Riding Style
Street
Color/Finish
Silver
