Andrews

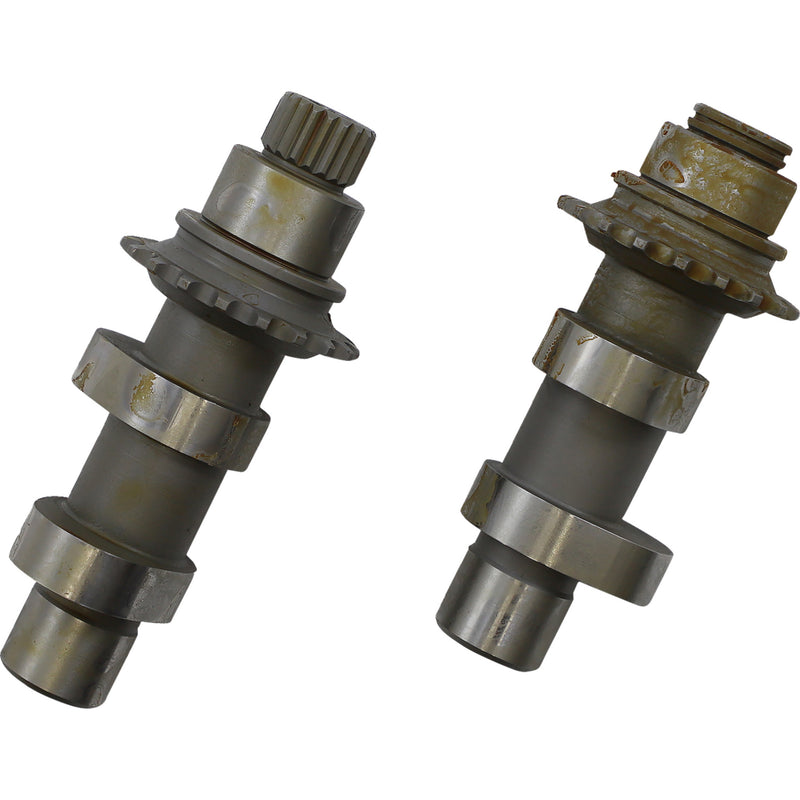

Andrews N Series Cam Kit - 216855 For Harley Motorcycles 1999-2006

MPN: 216855 SKU: 0925-0146
Andrews

Andrews N Series Cam Kit - 216855 For Harley Motorcycles 1999-2006

MPN: 216855 SKU: 0925-0146
Availability:
Only 1 left!
Allows upgrade of the '99-'06 Twin Cam (except '06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life Cam grinds listed are designed to be used with stock lifters; they require the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately) A list of required components is supplied with each set of cams Performance should be similar to earlier bikes with the same cam grinds Made in the USA '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot use the '07-'17 cams, as the bearing journal on the earlier motors is .875" in diameter and the '07-'17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate. '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must use the stock rear cam sprocket, OEM #25728-06. Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. Specs Part Notes Maximum torque and horsepower with 2600 - 6200+ rpm range. Designed for engines with 9.8:1 to 10.2:1 compression ratio. Coil bind should be checked; can be used with stock tappets (minimum valve travel of .620"). Piston-to-valve and valve-to-valve clearance must be checked.
$415.95
$415.95 - $415.95
Current price $415.95

Product Details

Product Description

Features

  • Allows upgrade of the '99-'06 Twin Cam (except '06 Dyna Glide) to the newer roller-style cam chains and replaces the spring tension cam chain adjusters with the later-style hydraulic adjusters for longer life
  • Cam grinds listed are designed to be used with stock lifters; they require the installation of a '07-'17 cam plate, oil pump, cam sprockets and chains, and both hydraulic chain adjusters (these parts are not included and must be purchased separately)
  • A list of required components is supplied with each set of cams
  • Performance should be similar to earlier bikes with the same cam grinds
  • Made in the USA
  • '99-'06 Twin Cam motors (except '06 Dyna Glide) cannot use the '07-'17 cams, as the bearing journal on the earlier motors is .875" in diameter and the '07-'17 cams are 1.000" in diameter. The "N" series of cams feature the .875" bearing journal, yet still accept the new style cam support plate.
  • '99-'01 model motors require Andrews rear cam sprocket . '02-'06 models must use the stock rear cam sprocket, OEM #25728-06.
  • Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.

Specs


Part Notes

  • Maximum torque and horsepower with 2600 - 6200+ rpm range.
  • Designed for engines with 9.8:1 to 10.2:1 compression ratio.
  • Coil bind should be checked; can be used with stock tappets (minimum valve travel of .620").
  • Piston-to-valve and valve-to-valve clearance must be checked.

Part Numbers
Store SKU MFR. Product # Availability
0925-0146 216855 In Stock
Fitment
This product is vehicle specific. Select your vehicle to confirm fitment.

This Product Fits

Fitment Disclosure

This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
